Product Details

The 40V max XGT 4-Speed Impact Driver gives the user compact fastening power, while delivering up to 230Nm of max torque with 4 Speed Settings and Tightening Mode.

The XGT Impact Driver features a Makita-built brushless motor that delivers up to 230NM of Max Torque, allowing it to outpower similar models in heavy load applications. It features digitally controlled modes for a wide variety of applications, including speed control and tightening modes to prevent sheet metal screw stripping.

The TD004GZ01 features Tightening Mode (T-mode) for faster tightening of self-drilling screws in thin gauge metal, it also helps prevent damage to the screw or workpiece. The Impact Driver features 4 speed settings (0-1,200/ 0-2,100/ 0-3,00/ 0-3,900 RPM & 0-1,900/ 0-3,100/ 0-3,600/ 0-3,900 IPM) for increased versatility and added user convenience.

Convenience features include built-in L.E.D. light that help eliminate shadows and illuminate a larger area, a length of only 13.6cm making it ideal for working in tight spaces, and a weight of only 1.1kg for reduced operator fatigue.

Tool only model - batteries & chargers sold separately. Click here to see the full range of Makita 40V max XGT Batteries & Chargers.

Features:

  • Digitally controlled modes for a wide variety of applications; speed control and tightening modes to prevent sheet metal screw stripping
  • Tightening Mode (T-mode) for faster tightening of self-drilling screws in thin gauge metal; helps prevent damage to the screw or workpiece
  • Ultra-smooth variable speed trigger provides optimum control
  • Reinforced gear housing engineered for maximum job site durability

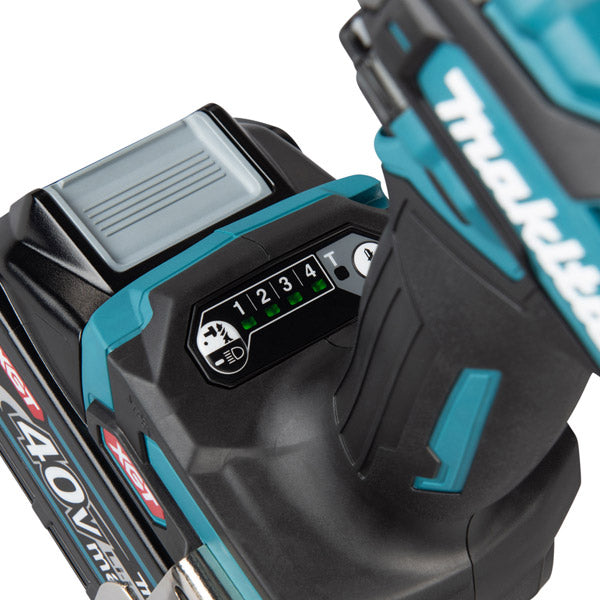

  • Electronic 4 stage impact power selection for added versatility
  • Ergonomic soft grip handle provides increased comfort

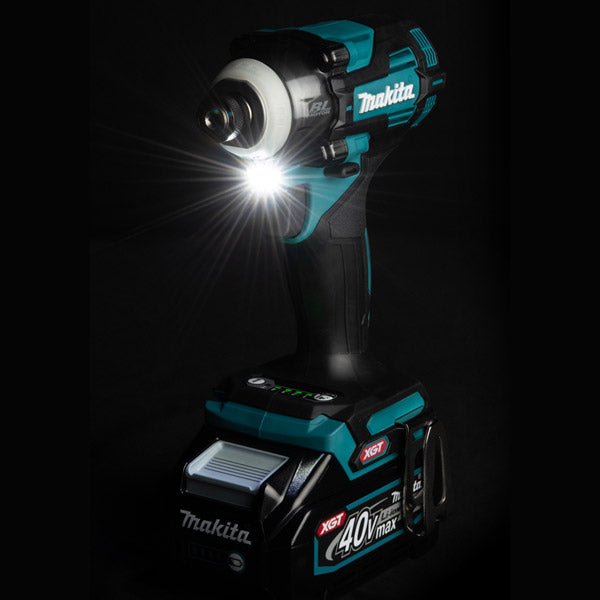

  • Built-in LED light illuminates the work area
  • eXtreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
Specifications
  • Battery voltage: 40 V
  • No load speed: 0-1200/2100/3000/3900 rpm
  • Max. fastening torque: 60/130/210/230 Nm
  • Tightening capacity (Standard Bolt): M5-M20
  • Tightening capacity (High Tensile Bolt): M5-M14
  • Capacity machine screw: M4-M8
  • Impacts per minute: 0-1900/3100/3600/3900
  • Driving shank: 1/4"
  • Product dimensions (L x W x H): 136 x 86 x 248 mm
  • Weight: 1.1 kg
What's Included?
Tool(s)
(1) TD004GZ01 40V XGT Impact Driver
    Batteries & Charger
  • None included

  • Tool Accessories
  • (1) Truss head screw M4 x 12
  • (1) Belt hook


Supplied in a recyclable cardboard box
