SKU: DCD796N
|PART#:
5055945211764
| EAN:
DCD796N

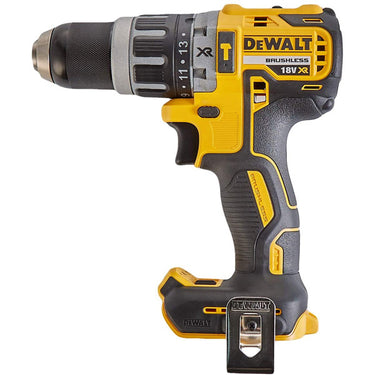

DeWalt 18V XR Brushless Hammer Drill Driver DCD796N Body Only
£86.95 INC. VAT
/
DeWalt 18V XR Brushless Hammer Drill Driver DCD796N Body Only
£86.95 INC. VAT
/
Low stock
- Please click here to see other options
Payment & Security
Express Shipping
Once orders are processed they are despatched on a next working day delivery service. With a 1-2 working day delivery estimate. (Highland & Offshore 2-3 Day Service)
Product Details
At only 173mm in length but delivering up to 70Nm in torque, the DCD796 is a compact hammer drill driver designed for heavy-duty use in confined spaces. With adjustable speed and torque control, it’s ideal for countless professional tradesmen including plumbers, HVAC installers, carpenters and general contractors.
Features:
- Ultra compact, lightweight design allows use in confined spaces
- Improved ergonomic design with rubber grip over mould improving users comfort
- Two speed all metal transmission for increased runtime and longer tool life
- Intelligent trigger design allows for total control of application
- Steel belt hook and magnetic bit holder ensures strong storage solutions
- Part of the intelligent XR Lithium Ion Series designed for efficiency and making applications faster
- Drill Driver and Hammer feature for multiply applications
- 15 position adjustable torque control for consistent screw driving into a variety of materials
- Brushless Motor Technology for excellent efficiency
Specifications
- Battery chemistry: Li-ion
- Battery voltage: 18 V
- Beats per minute: 0-9,350/34,000 bpm
- Chuck capacity: 1.5-13 mm
- Depth: 67 mm
- Hand/Arm Vibration (drilling into metal): <2.5m/s2
- Hand/Arm Vibration (hammer drilling into concrete): 11.5m/s2
- Hand/Arm Vibration (screw driving without impact): <2.5m/s2
- Height: 203 mm
- Length: 173 mm
- Max. drilling capacity (masonry): 13 mm
- Max. drilling capacity (metal): 13 mm
- Max. drilling capacity (wood): 40 mm
- Max. torque (hard): 70 Nm
- Max. torque (soft): 27 Nm
- No load speed (drilling/driving mode): 0-550/2,000 rpm
- No Load Speed (hammer mode): 0-550/2,000 rpm
- Nominal maximum RPM: 2000
- No. of speeds: 2
- Power output: 420 W
- Power rating: 460
- Sound power: 100 dB(A)
- Sound power uncertainty: 3 dB(A)
- Sound pressure: 89 dB(A)
- Sound pressure uncertainty: 3 dB(A)
- Uncertainty K 1 (Vibration): 1.5 m/s2
- Uncertainty K 2 (Vibration): 1.6 m/s2
- Uncertainty K 3 (Vibration): 1.5 m/s2
- Weight: 3.6kg
What's Included?
- DCD796 Drill/Driver body
-
- (1) Belt hook
- (1) Magnetic bit holder
- Supplied in a TSTAK heavy duty kitbox
-
